The C-Star electric chain hoist or integrated trolley suspension is efficient and durable. The body consists of three main parts, which are easy to maintain and low maintenance.

C-Star Electric chain hoist hook or integrated car suspension

Rated load 1600 - 10000 kg

This series of electric hoist products is a high quality product designed to meet the needs of professional applications. Efficient and durable, the body consists of three main components that are easy to maintain and low in maintenance costs.

Product Features

The gearbox does not require additional lubrication maintenance.
The motor is equipped with a thermal overheat protection as standard.
The squirrel-cage motor brake of the heavy-duty working system is more safe and normally closed. Only when the power is applied, the brake pressure of the spring can be opened by the action of the electromagnetic coil, even in the case of sudden power failure. Heavy objects do not slip freely.
The motor has a degree of protection of IP54 and Class F insulation.
The control handle is protected to IP65.
The hoisting sprocket is designed with a 5-chain socket and is made of steel with high wear resistance and high hardness. It can be used with the standard lifting chain to ensure smooth and accurate lifting action.
The oil-immersed lubricated planetary gear mechanism makes the work particularly smooth.
The standard configuration of the lifting chain has a hardened outer casing and a enamel-coated layer, which perfectly matches the hoist body to ensure smooth and accurate operation.
The material of the upper and lower hooks is made of anti-aging and high-toughness alloy steel. In the event of overload, the first deformation will occur without sudden breakage, which ensures the safety of the user.
Overload protection, easy to adjust

Product option

Flexible chain bag
Stainless steel lifting chain
Stainless steel motor brake
90 degree rotating hook
Rotary vane adjustable upper and lower limit device
Buffer block

Specifications

Model	Rated load / number of chains	Ring chain specification dxp mm	FEM Working level	Standard lifting speed Fast m/min	Standard lifting speed Slow speed m/min	Motor Power kW	Motor continuous power rate ED %
CPE(F) 16-8	1600/1	11 x 31	1Am	8	2	2.3/0.58	40/20
CPE(F) 20-8	2000/1	11 x 31	1Bm	8	2	2.8/0.7	25/15
CPE(F) 25-5	2500/1	11 x 31	1Am	5	1.25	2.3/0.58	40/20
CPE(F) 30-5	3000/1	11 x 31	1Bm	5	1.25	2.8/0.7	25/15
CPE(F) 32-4	3200/2	11 x 31	1Am	4	1	2.3/0.58	40/20
CPE(F) 40-4	4000/2	11 x 31	1Bm	4	1	2.8/0.7	25/15
CPE(F) 50-2	5000/2	11 x 31	1Am	2.5	0.6	2.3/0.58	40/20
CPE(F) 75-1.6	7500/3	11 x 31	1Am	1.6	0.4	2.8/0.58	40/20
CPE(F) 100-2	10000/4	11 x 31	1Am	2.5	0.6	2x2.3/0.58	40/20

CPE(F) 16-8 CPE(F) 20-8 CPE(F) 25-5 CPE(F) 30-5 CPE(F) 32-4 CPE(F) 40-4 CPE(F) 50-2 CPE(F) 100-2

型号	Hook installation net weight* kg	Integrated hand push trolley Net weight* kg	Integrated hand trolley Net weight * kg	Integrated electric trolley** Net weight* kg
93	155	159	169
93	155	159	169
93	155	159	169
93	155	159	169
112	174	178	187
112	174	178	187
112	174	178	187
287	-	390	411

Dimensions

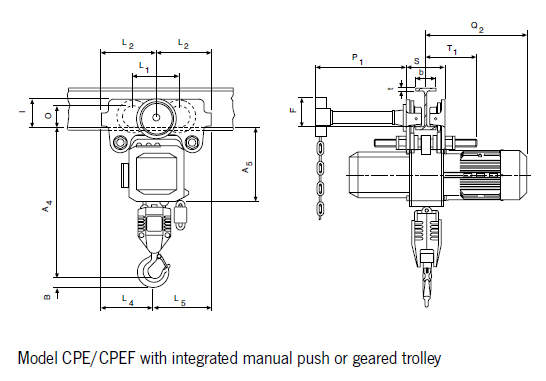

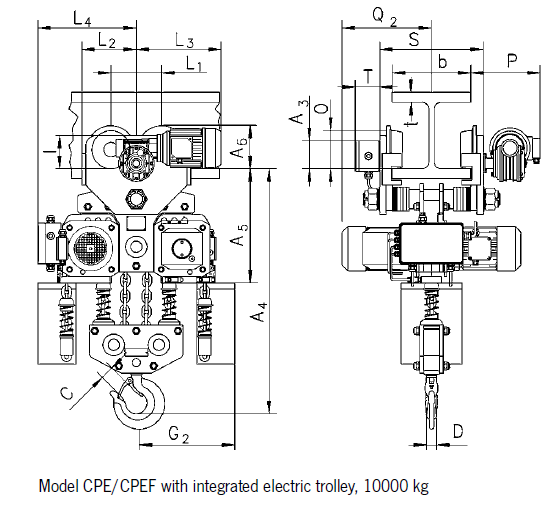

型号	CPE(F) 16-8	CPE(F) 20-8	CPE(F) 25-5	CPE(F) 30-5	CPE(F) 32-4	CPE(F) 40-4	CPE(F) 50-2	CPE(F) 75-1.6	CPE(F) 100-2
A, mm	516	516	516	516	681	681	681	950	1068
A1, mm	286	286	286	286	428	428	428	479	651
A2 (13 m), mm	430	430	430	430	430	430	430	-	-
A2 (21 m), mm	530	530	530	530	530	530	530	530	555
B, mm	35	35	35	35	45	45	45	60	60
C, mm	37	37	37	37	46	46	46	52	52
D, mm	24	24	24	24	30	30	30	40/45	40/45
E, mm	24	24	24	24	24	24	24	-	-
F1, mm	160	160	160	160	160	160	160	160	160
F2, mm	178	178	178	178	178	178	178	178	178
G, mm	220	220	220	220	220	220	220	220	705
G1, mm	180	180	180	180	140	140	140	268	315
G2 (13 m), mm	257	257	257	257	218	218	218	-	-
G2 (21 m), mm	277	277	277	277	238	238	238	345	408
H1, mm	110	110	110	110	110	110	110	110	135
H2, mm	135	135	135	135	135	135	135	307	256
Kl, mm	100	100	100	100	100	100	100	92	92
K2, mm	51	51	51	51	51	51	51	62	62
M, mm	50	50	50	50	9.6	9.6	9.6	138	-
N, mm	84	84	84	84	124	124	124	136	390
Q1, mm	280	280	280	280	280	280	280	280	280
Q2 (CPE), mm	362	362	362	362	362	362	362	362	362
Q2 (CPEF), mm	417	417	417	417	417	417	417	417	417

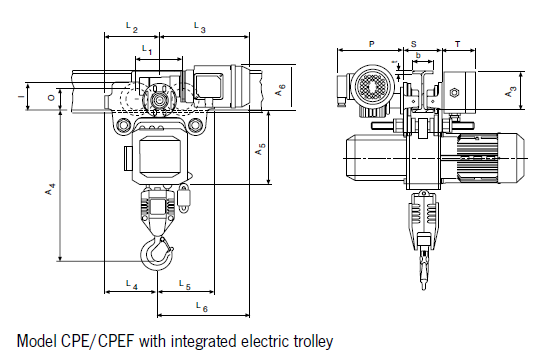

型号	CPE(F) 16-8	CPE(F) 20-8	CPE(F) 25-5	CPE(F) 30-5	CPE(F) 32-3	CPE(F) 40-4	CPE(F) 50-2	CPE(F) 75-1.6	CPE(F) 100-2
A3, mm	143	143	143	143	143	143	143	-	110
A4, mm	465	465	465	465	615	615	615	855	965
A5, mm	298	298	298	298	298	298	298	477	450
A6, mm	178	178	178	178	178	178	178	-	170
b, mm	A = 98 - 180/ B = 180 - 300	A = 98 - 180/ B = 180 - 300	A = 98 - 180/ B = 180 - 300	A = 98 - 180/ B = 180 - 300	A = 98 - 180/ B = 180 - 300	A = 98 - 180/ B = 180 - 300	A = 98 - 180/ B = 180 - 300	A = 98 - 180/ B = 180 - 300	A = 98 - 180/ B = 180 - 300
F, mm	150	150	150	150	150	150	150	113	113
l, mm	142.5	142.5	142.5	142.5	142.5	142.5	142.5	170	170
L1, mm	209	209	209	209	209	209	209	200	200
L2, mm	262.5	262.5	262.5	262.5	262.5	262.5	262.5	215	215
L3 (VTE), mm	292	292	292	292	292	292	292	-	335
L3 (VTEF), mm	296	296	296	296	296	296	296	-	335
L4, mm	213	213	213	213	253	253	253	215	390
L5, mm	312	312	312	312	272	272	272	215	215
L6 (VTE), mm	342	342	342	342	302	342	342	-	-
L6 (VTEF), mm	346	346	346	346	306	306	306	-	-
0, mm	125	125	125	125	125	125	125	150	150
P (VTE), mm	197	197	197	197	197	197	197	-	273
P (VTEF), mm	205	205	205	205	205	205	205	-	280
P1, mm	229	229	229	229	229	229	229	-	110
S, mm	b+70	b+70	b+70	b+70	b+70	b+70	b+70	b+98	b+98
T, mm	97	97	97	97	97	97	97	-	97
tmax., mm	27	27	27	27	27	27	27	40	40
