YAL pneumatic chain hoist

Time: 2019-07-31Views：

The YAL pneumatic chain hoist series offers a variety of control speeds and is more cost effective than electric hoists.

YAL Pneumatic chain hoist

Rated load YAL pneumatic chain hoist

The YAL pneumatic hoist series is ideal for your material handling and can be used in environments where the electric hoist cannot be operated. The YAL pneumatic chain hoist series offers a variety of control speeds and is more cost effective than electric hoists.

Product Features

YAL type pneumatic chain hoist has two control modes - draw rope control mode, light and economical design, precise control of heavy objects; control handle mode, one-hand control, easy to operate.
The air inlet unit with a rotatable built-in strainer is used.
It is made of aluminum alloy and is light in weight and easy to carry.
Brake brakes for high duty applications.
An external adjustable nut is used to reduce the lifting speed.
External adjustable brake.
Equipped with upper and lower limit devices.
A gear transmission mechanism made of alloy steel and heat treated.
The motor consisting of 8 blades has high torque and smooth start and operation.
The vent is 1/2 NPTF, and an additional silencer is added for quieter operation.
Fine Positioning - The up and down speed of the weight can be a continuous variable between zero and maximum.
Operates at extremely high temperatures - operates at high temperatures without additional protection.
Delivering higher speed requirements - For applications where speed is critical, the YAL pneumatic chain hoist series offers higher speeds.
Stay away from the danger of electric shock - Air pressure is the source of power for pneumatic hoists, so it has a significant advantage over electric shocks compared to electric hoists.
Easy to maintain - no replacement for electric hoists, transformers, motor components, fuses, etc. The YAL pneumatic chain hoist series is very easy to maintain as long as it provides a high quality air supply and lubrication.
The standard handle can be 1.8 meters long and other lengths are also available.

Product option

Spark-proof option - can be used in environments where flammable materials are present.

Specifications

Pull rope type

Hook type/Fixed
Type	Rated load kg	Model	Standard lifting height m	* Maximum lifting speed m/min	* Maximum falling speed m/min	Full load lift gas consumption (90 PSI) m³/min	Air pipe joint size	Minimum inner diameter of the duct mm	Exhaust port size	Number of lower hook chains	Net weight kg
Chain (standard type)	250	YAL1/4-10**65P1	3	19.8	29.0	1.4	3/8 NPTF	12.7	1/2 NPTF	1	16
	500	YAL1/2-10**45P1	3	13.7	36.6	1.4	3/8 NPTF	12.7	1/2 NPTF	1	16
	1000	YAL1-10**23P1	3	7.0	18.3	1.4	3/8 NPTF	12.7	1/2 NPTF	2	22
Chain (fire pattern)	338	YAL3/8-10**60P1SR	3	18.3	30.5	1.4	3/8 NPTF	12.7	1/2 NPTF	1	16
Chain (fire pattern)	675	YAL4/10-10**29P1SR	3	8.8	15.8	1.4	3/8 NPTF	12.7	1/2 NPTF	2	22
Roll chain	250	YAR1/4-10**65P1	3	19.8	29.0	1.4	3/8 NPTF	12.7	1/2 NPTF	1	17
	500	YAR1/4-10**65P1	3	13.7	36.6	1.4	3/8 NPTF	12.7	1/2 NPTF	1	17
	1000	YAR1/4-10**65P1	3	7.0	18.3	1.4	3/8 NPTF	12.7	1/2 NPTF	2	23
Note: When ordering the product, hook type, please replace with TH; fixed type, replace with LG; pneumatic type, ** please replace with MT.

Handle type

Hook / fixed
Type	Rated load kg	Model	Standard lifting height m	* Maximum falling speed m/min	*Maximum falling speed m/min	Full load lift gas consumption (90 PSI) m³/min	Air pipe joint sizeMinimum inner diameter of the duct	mm	Exhaust port size	Number of lower hook chains	Net weight kg
Chain (standard type)	250	YAL1/4-10**65T1	3	19.8	29.0	1.4	3/8 NPTF	12.7	1/2 NPTF	1	21
	500	YAL1/2-10**45T1	3	13.7	36.6	1.4	3/8 NPTF	12.7	1/2 NPTF	1	21
	1000	YAL1-10**23T1	3	7.0	18.3	1.4	3/8 NPTF	12.7	1/2 NPTF	2	27
Chain (fire pattern)	338	YAL3/8-10**60T1SR	3	18.3	30.5	1.4	3/8 NPTF	12.7	1/2 NPTF	1	21
Chain (fire pattern)	675	YAL3/4-10**29T1SR	3	8.8	15.8	1.4	3/8 NPTF	12.7	1/2 NPTF	2	27
Roll chain	250	YAR1/4-10**65T1	3	19.8	29.0	1.4	3/8 NPTF	12.7	1/2 NPTF	1	21
	500	YAR1/4-10**65T1	3	13.7	36.6	1.4	3/8 NPTF	12.7	1/2 NPTF	1	21
	1000	YAR1/4-10**65T1	3	7.0	18.3	1.4	3/8 NPTF	12.7	1/2 NPTF	2	28
Note: When ordering the product, hook type, please replace with TH; fixed type, replace with LG; pneumatic type, ** please replace with MT.

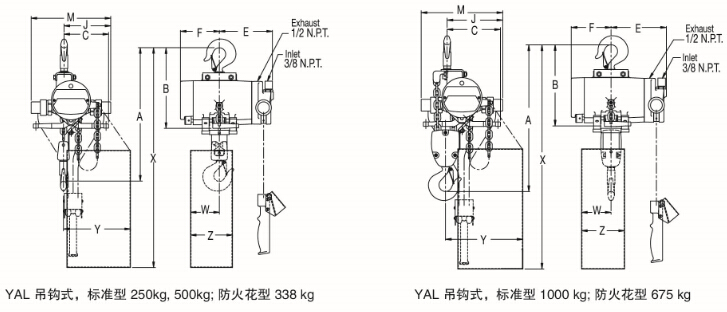

Dimensions

Model	Rated load kg	A mm	B mm	C mm	E mm	F mm	M mm	W mm	X mm	Y mm	Z mm
Standard type
Roll chain	250	387	260	121	179	129	259	92	765	217	133
	500	387	260	121	179	129	259	92	765	217	133
	1000	457	260	146	179	129	259	92	765	246	133
Chain	250	387	260	121	179	129	259	92	765	217	133
	500	387	260	121	179	129	259	92	765	217	133
	1000	457	260	146	179	129	259	92	765	246	133
Anti-spark type
Chain	338	387	260	121	179	129	259
Chain	675	457	260	146	179	129	259

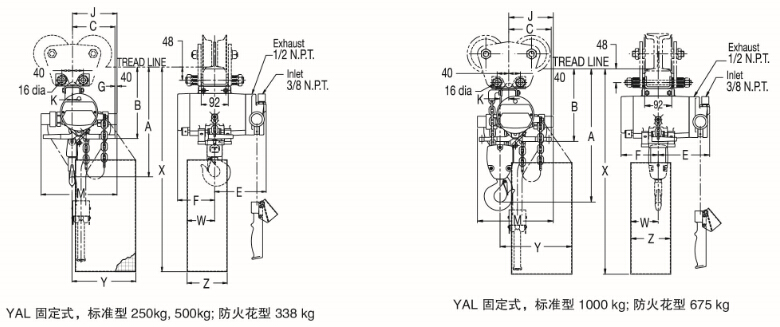

YAL fixed form factor

Model	Rated load kg	A mm	B mm	C mm	E mm	F mm	J mm	K mm	M mm	W mm	X mm	Y mm	Z mm
Standard type
Chain	250	352	244	121	179	129	152	2	259	92	743	217	133
	500	352	244	121	179	129	152	2	259	92	743	217	133
	1000	432	248	146	179	129	152	30	259	92	743	246	133
Anti-spark type
Chain	338	352	244	121	179	129	152	2	259
Chain	675	432	248	146	179	129	152	30	259
