CPA Mini Pneumatic chain hoist
Rated load 125 - 980 kg
The characteristics of pneumatic chain hoists are: long-term continuous operation in a wide range of industrial applications. Excellent performance but light weight makes it easy to transport.
Product Features
- Working pressure is 5 -7 bar
- Full-load rotary piston air motor, infinite start, continuous operation
- Integrated limit switch to position the hook in the highest and lowest positions of the standard
- Automatically adjustable disc brakes, no maintenance required
- Ultra-sensitive control device for emergency positioning of heavy objects
- CPA 2-31, CPA5-17 and CPA 10-9 come standard with pneumatic release brakes
- Standard set chain box
Product option
- Manual and electric trolley with shackle, hook attached to the pneumatic chain hoist
- All models can be equipped with hand or push trolley
- CPA 2-31, CPA 5-17 and CPA 10-9 can also be equipped with pneumatic trolleys
- CPA 2-31, CPA 5-17 and CPA 10-9 are also capable of working in hazardous areas, Category 2 (Zone 1/21)
- CPA 2-31, CPA 5-17 and CPA 10-9 can also be equipped with chain control
- Pneumatic triplex for gas supply pipes (regulators, pressure gauges and lubricators)
Applications
Automotive industry, aviation industry, shipyards, ships and terminals. Foundry, onshore operations / offshore operations, paint plants, paint plants. Refining industry, oil field mining, electroplating workshop. Printing and dyeing, textile and food industries, paper mills and cement plants. Glass and ceramic industry, wood processing industry, chemical industry, heat treatment and power plants.
Specifications
|
Model |
Rated load kg |
Standard lifting height m |
Air pressure bar |
Lifting speed during load* m/min |
Lifting speed without load* m/min |
Slow load* m/min |
Air consumption during load* m³/min |
Air pipe joint size |
Minimum inner diameter of the duct mm |
Number of lower hook chains |
Hoist power kW |
Net weight kg |
|
CPA 1-13 |
125 |
3 |
6.3 |
13.1 |
17.1 |
11.3 |
0.9 |
3/8 NPT |
25.4 |
1 |
0.4 |
15.4 |
|
CPA 2-10 |
250 |
3 |
6.3 |
9.8 |
17.1 |
13.7 |
0.9 |
3/8 NPT |
25.4 |
1 |
0.4 |
15.4 |
|
CPA 2-31 |
250 |
3 |
6.3 |
31.0 |
52.0 |
36.0 |
1.98 |
3/8 NPT |
25.4 |
1 |
1.33 |
21.8 |
|
CPA 5-5 |
500 |
3 |
6.3 |
4.6 |
7.9 |
6.7 |
0.9 |
3/8 NPT |
25.4 |
2 |
0.4 |
17.2 |
|
CPA 5-17 |
500 |
3 |
6.3 |
16.8 |
32.3 |
29.6 |
1.27 |
3/8 NPT |
25.4 |
1 |
1.33 |
21.8 |
|
CPA 10-9 |
980 |
3 |
6.3 |
8.5 |
16.2 |
14.9 |
1.27 |
3/8 NPT |
25.4 |
2 |
1.33 |
27.7 |
|
*Refers to the data at a pressure of 6.3 bar (smooth air pressure) and a handle line length of 2 meters. A longer handle line will result in a lower speed. The rubber tube is up to 12 meters long. CPA 1-13, CPA 2-10 and CPA 5-5 rubber hoses are up to 12 meters long. CPA 2-31, CPA 5-17 and CPA 10-9 rubber hoses are up to 20 meters long. |
||||||||||||

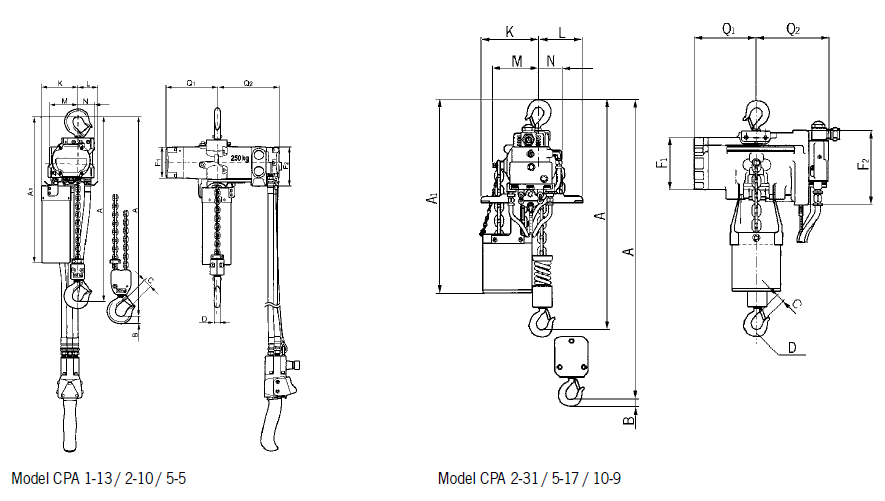

Dimensions
|
Model |
CPA 1-13 |
CPA 2-10 |
CPA 2-31 |
CPA 5-5 |
CPA 5-17 |
CPA 10-9 |
|
A, mm |
292 |
292 |
457 |
324 |
457 |
457 |
|
A1, mm |
410 |
410 |
483 |
410 |
483 |
508 |
|
B, mm |
21 |
21 |
25 |
14 |
25 |
27 |
|
C, mm |
20 |
20 |
24 |
24 |
24 |
28 |
|
D, mm |
16 |
16 |
26 |
14 |
26 |
28 |
|
F1, mm |
90 |
90 |
130 |
90 |
130 |
130 |
|
F2, mm |
120 |
120 |
180 |
120 |
180 |
180 |
|
K, mm |
103 |
103 |
146 |
103 |
146 |
165 |
|
L, mm |
57 |
57 |
102 |
57 |
102 |
83 |
|
M, mm |
120 |
120 |
114 |
120 |
114 |
135 |
|
N, mm |
50 |
50 |
54 |
50 |
54 |
25 |
|
Q1, mm |
142 |
142 |
162 |
142 |
162 |
162 |
|
Q2, mm |
183 |
183 |
181 |
183 |
181 |
181 |
