Ratchet Lover Hoist

Yale D85/C85

Time: 2019-07-30Views：

C85 Ratchet lever hoist with roller chain D85 Ratchet lever hoist with link chain Capacity 750 - 10000 kg Almost unlimited applications in maintenance, mining,construction, steel fabrication, shipbuilding and utility work. Ideal for moving

C85 Ratchet lever hoist with roller chain D85 Ratchet lever hoist with link chain

Capacity 750 - 10000 kg

Almost unlimited applications in maintenance, mining,construction, steel fabrication, shipbuilding and utility work. Ideal for moving and positioning heavy machines and securing heavy loads, simplifies setting pipes etc. in manholes and trenches.

Standard Features

Enclosed housing with housing cover, handlever and bottom block made from high tensile white malleable cast iron for overall rugged construction.
The graphite cast iron load sheave for the link chain has precision machined chain pockets for accurate fit and durability of the load chain.
The roller chain sprocket is made from heat treated chromium-molybdenum steel with precision machined teeth to ensure smooth chain movement.
Alloyed steel link chain with zinc-plated resp. yellow chromated finish, in accordance with national and international standards and regulations.

Options

All models can be equipped with an overload prevention device in the form of a slip clutch which is factory preset to approx. 25 % ± 15 % overload.
Free chaining device to quickly attach the load or to pull the chain through the hoist in both directions.
Hoist with sling chain.

Specifications

Model	Capacity kg	Standard lifting height m	Number of chain falls	Lift with one full lever turn mm	Handle pull at WLL daN	Headroom mm	Weight kg
Pul-Iift C85 750	750	1.5	1	115	38	322	9
Pul-Iift C85 1500	1500	1.5	1	45	31	389	17
Pul-Iift C85 3000	3000	1.5	1	36	40	403	22
Pul-Iift C85 6000	6000	1.5	2	18	44	560	38
Pul-Iift C85 10000	10000	1.5	3	12	44	785	67

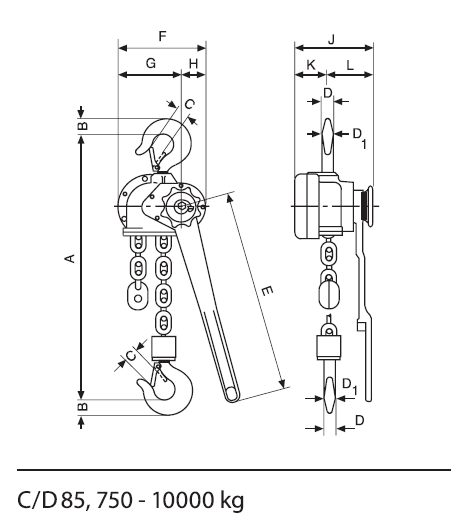

Dimensions

C85

Model	Pul-Iift C 85 750	Pul-Iift C 85 1500	Pul-Iift C 85 3000	Pul-Iift C 85 6000	Pul-Iift C 85 10000
Amin.. mm	322	389	403	560	785
B, mm	21	27	35	48	61
C, mm	27	30	34	46	54
D, mm	15	20	25	40	40
D1, mm	17	23	25	40	45
E, mm	443	443	570	570	570
F, mm	112	189	197	197	305
G, mm	56	134	142	142	163
H. mm	56	55	55	55	142
J, mm	142	171	179	218	218
K. mm	39	72	76	76	76
L, mm	103	99	103	142	142

D85

Model	Pul-Iift D 85 750	Pul-Iift D 85 1500	Pul-Iift D 85 3000	Pul-Iift D 85 6000	Pul-Iift D 85 10000
Amin.. mm	322	389	403	532	805
B, mm	21	27	35	48	61
C, mm	27	30	34	46	54
D, mm	15	20	25	40	40
D1, mm	17	23	25	40	45
E, mm	443	443	570	570	570
F, mm	112	189	197	197	305
G, mm	56	134	142	142	163
H. mm	56	55	55	55	142
J, mm	142	171	179	218	218
K. mm	39	72	76	76	76
L, mm	103	99	103	142	142
