Electric chain hoist model YJL
Capacity 250 - 2000 kg
Standard Features
- Five-Pocket Load Sheave – Increased chain and sheave engagement 25% over hoists with conventional four-pocket sheaves. Provides smoother lifting and reduces chain wear.
- Mechanical Overload Protection Device – Helps protect hoist, operator, and supporting structures from damaging overloads, chain jamming and reverse phasing.
- Limit Switches – Adjustable to regulate upper and lower load travel.Brass nuts standard for improved repeatability and chain posi tioning.
- Multiple Disc Motor Brake – Heavy duty design for reliable operation.Direct acting for positive load holding and spotting.
- Chain End Stop Assembly – Fits below dead end link on lifting chain for added measure of protection.
- Oil Bath Transmission – Precision machined alloy steel gears run in oil bath for longer, quieter operation.
- Manual and Motorized trolleys – Single and Dual Speed Models.
- Wrap-Around Side Plates – Act as safety lugs and as bumpers to protect wheels. Available to fit American Standard I-Beams, wide-flange, and patented track beams.
- Precision Trolley Wheels – Dual tread trolley wheels fit either flat or tapered I-Beams. Also available in bronze or stainless steel .
Options
- Trolley Bumpers (if with manual or motor-driven trolley)
- Galvanized Load Chain
Specifications
Specifications model YJL with YJL hook/lug suspension
|
Model |
Capacity kg |
Standard Lifting height m |
Lift speed** |
Motor kW |
No. of chain falls |
Headroom mm |
Net Weight kg |
||
|
-TH |
-LG |
-TH |
-LG |
||||||
|
YJL 1/4-32(*) |
250 |
3 |
8.0/2.7 |
0.37 |
1 |
460 |
428 |
34 |
34 |
|
YJL 1/2-32(*) |
500 |
3 |
8.0/2.7 |
0.75 |
1 |
460 |
428 |
40 |
40 |
|
YJL 1-16(*) |
1000 |
3 |
4.0/1.3 |
0.75 |
1 |
460 |
428 |
41 |
41 |
|
YJL 2-8(*) |
2000 |
3 |
2.0/0.7 |
0.75 |
2 |
530 |
428 |
45 |
45 |
Dimensions
|
Model |
1/4 t |
1/2 t |
1 t |
2 t |
|

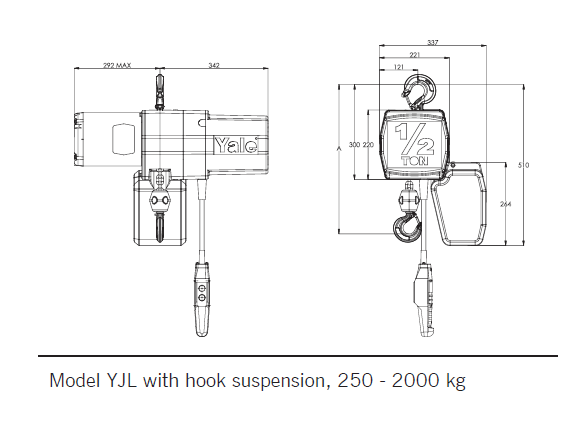

A(Hook), mm |
460 |
460 |
460 |
530 |
|

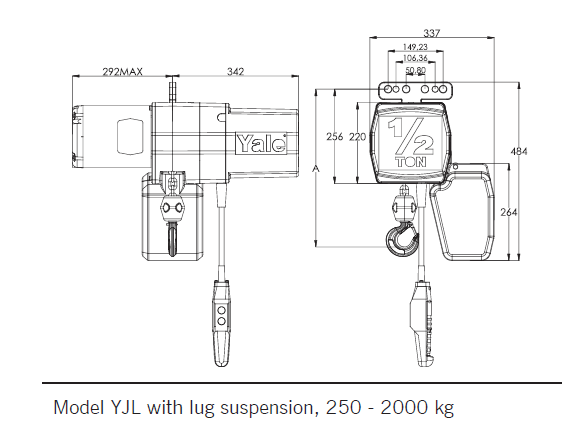

A(Lug), mm |
428 |
428 |
428 |
498 |
|

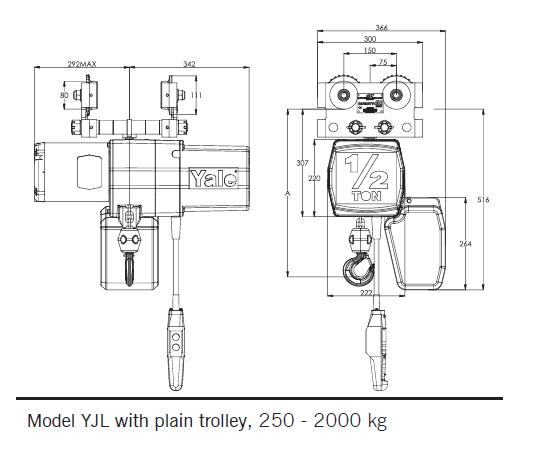

A(PT), mm |
451 |
451 |
451 |
521 |
|

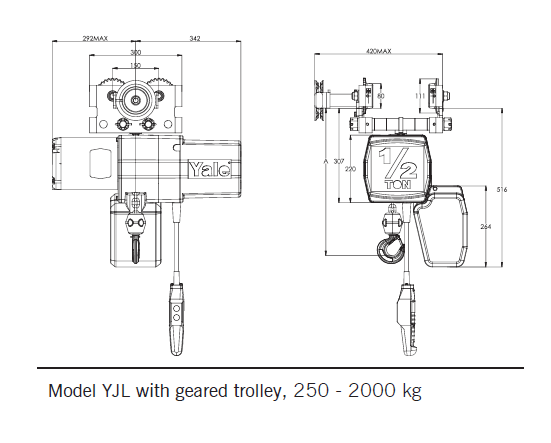

A(GT), mm |
451 |
451 |
451 |
521 |
|

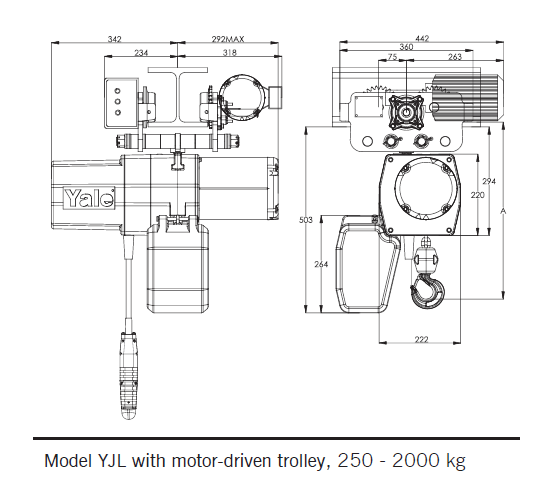

A(MT), mm |
466 |
466 |
466 |
536 |
