Pneumatic Hoist

CPA

Time: 2019-08-01Views：

The CPA pneumatic chain hoist is mainly composed of three major components and is very easy to maintain and economical.

CPA pneumatic chain hoist hook or integrated trolley suspension

Rated load 2000 - 10000 kg

With a 100% rated working rating and unlimited start-up, the CPA pneumatic chain hoist is ideal for high-strength industrial applications. Its closed construction is immune to external pollution, moisture and other media. Mainly composed of three major components, it is very easy to maintain and economical.

Product Features

The rugged rotary piston motor has an adjustable brake spring that effectively maintains the load even if the air supply is suddenly lost.
The switching regulator inside the air motor guarantees high starting torque.
The control handle 4 button can control the operation of the hoist and the trolley sensitively, and has an emergency stop switch as standard.
Large-diameter silencers can effectively reduce the noise caused by exhaust.
The normal working pressure is 4 to 6 bar.
Planetary gear mechanisms with oil-immersed lubrication provide extremely smooth operation and reduced design size.
The hoisting sprocket is designed as a 5-chain socket. It is made of steel with high wear resistance and high hardness. It can be used with the standard lifting chain to ensure smooth and accurate lifting action.
The precision machined guide groove is extremely rugged and easy to replace.
The material of the upper and lower hooks is made of non-aging, high-toughness alloy steel, which will deform when overloaded without sudden breakage, ensuring the safety of the user.
The standard lifting chain has a hardened outer casing and a galvanized surface. The perfect fit with the hoist body ensures smooth and accurate operation.

Product option

Optional manual or pneumatic trolley.
Stainless steel lifting chain option.
Pneumatic triple fitting options (including regulators, pressure gauges and lubricators).

Specifications

Model	Rated load kg / chain number	Standard lifting height m	air pressure bar	Lifting speed during load* m/min	Lifting speed without load* m/min	Falling speed during load* m/min	Air consumption during load m³/min	Minimum inner diameter of the duct mm	Number of lower hook chains	Hoist power kW	Net weight kg
Model	Rated load kg / chain number	Standard lifting height m	air pressure bar	Lifting speed during load* m/min	Lifting speed without load* m/min	Falling speed during load* m/min	Air consumption during load m³/min	Minimum inner diameter of the duct mm	Number of lower hook chains	Hoist power kW	Hook type	Push type	Hand-held	Pneumatic trolley
CPA 20-8	2000	3	6	7.4	9.9	11.0	4.7	25.4	1	2.6	121	184	188	199
CPA 30-6	3000	3	6	6.0	9.9	13.0	4.7	25.4	1	3.2	121	184	188	199
CPA 40-4	4000	3	6	3.7	5.0	5.5	4.7	25.4	2	2.6	140	202	206	218
CPA 50-3	5000	3	6	3.4	5.0	6.0	4.7	25.4	2	3.0	140	202	206	218
CPA 60-3	6000	3	6	3.0	5.0	6.5	4.7	25.4	2	3.2	140	202	206	218
CPA 75-2	7500	3	6	2.0	3.3	4.3	4.7	25.4	3	3.2	-	-	-	-
CPA 100-3	10000	3	6	3.4	5.0	6.0	9.4	25.4	4	2x3.0	-	-	-	-

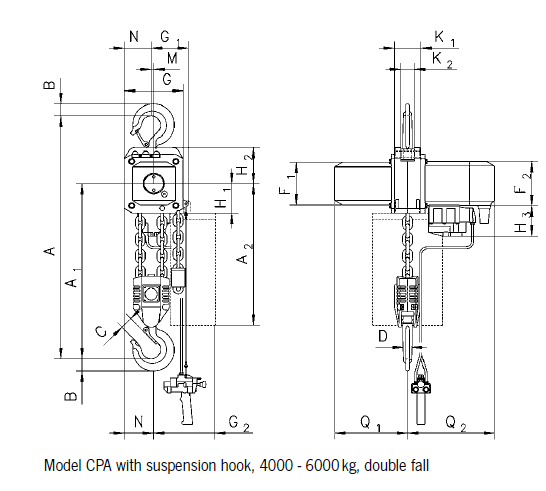

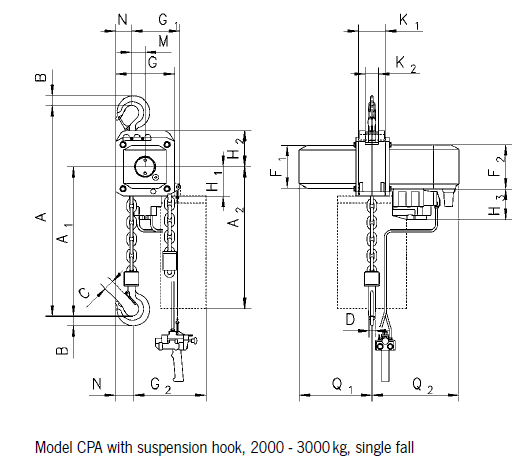

Dimensions

Model	CPA 20-8	CPA 30-6	CPA 40-4	CPA 50-3	CPA 60-3	CPA 75-2	CPA 100-3
A, mm	516	516	681	681	681	950	1068
A1, mm	286	286	428	428	428	479	651
B, mm	35	35	45	45	47	60	60
C, mm	37	37	46	46	42	52	52
D, mm	24	24	30	30	30	40/45	40/45
F1, mm	160	160	160	160	160	160	160
F2, mm	165	165	165	165	165	165	165
G, mm	220	220	220	220	220	220	581
G1, mm	180	180	140	140	140	268	311
G2 (13 m), mm	258	258	218	218	218	-	-
G2 (21 m), mm	278	278	238	238	238	345	408
H1, mm	110	110	110	110	110	110	110
H2, mm	135	135	135	135	135	307	256
H3,mm	115	115	115	115	115	115	115
K1, mm	100	100	100	100	100	92	92
K2, mm	51	51	51	51	51	62	62
M, mm	50	50	9.6	9.6	9.6	139	181
N, mm	60	60	100	100	100	136	291
Q1, mm	272	272	272	272	272	272	272
Q2, mm	325	325	325	325	325	325	325

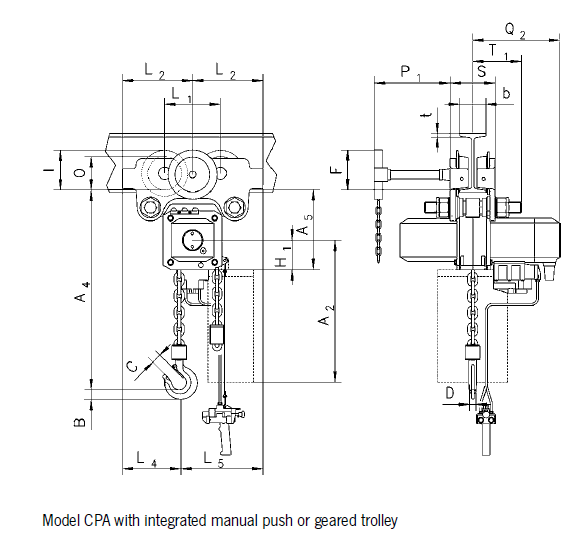

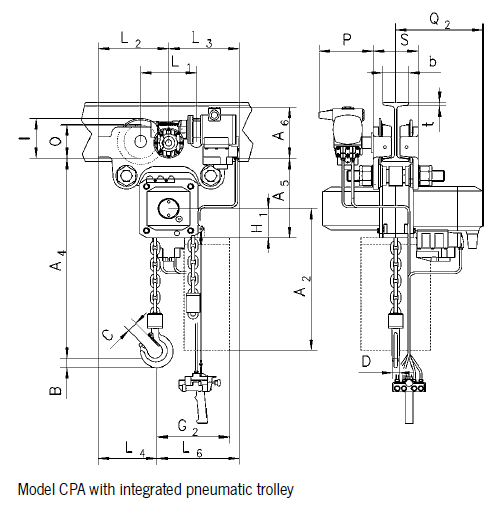

Model	CPA 20-8	CPA 30-6	CPA 40-4	CPA 50-3	CPA 60-3	CPA 75-2	CPA 100-3
A2 (13 m),mm	430	430	430	430	430	-	-
A2 (21 m),mm	530	530	530	530	530	530	530
A4,mm	465	465	615	615	615	855	965
A5,mm	298	298	298	298	298	477	425
A6, mm	190	190	190	190	190	182	182
b， mm	A = 98 - 180/B = 180 - 300	A = 98 - 180/B = 180 - 300	A = 98 - 180/B =180 - 300	A = 98 - 180/B = 180 - 300	A = 98 - 180/B = 180 - 300	125 - 310	125 - 310
F， mm	150	150	150	150	150	113	113
I， mm	142.5	142.5	142.5	142.5	142.5	130	130
L1， mm	209	209	209	209	209	200	200
L2， mm	262.5	262.5	262.5	262.5	262.5	215	215
L3， mm	265	265	265	265	265	265	265
L4， mm	213	213	253	253	253	291	291
L5， mm	312	312	272	272	272	-	-
L6， mm	315	315	275	275	275	-	-
O， mm	125	125	125	125	125	150	150
P， mm	208	208	208	208	208	208	208
P1， mm	284	284	284	284	284	284	284
S， mm	b+70	b+70	b+70	b+70	b+70	b+98	b+98
t， mm	27	27	27	27	27	40	40
T1 size A	182	182	182	182	182	270	270
T1 size B	242	242	242	242	242	270	270
