CBTG/CBTG Monorail trolley

Time: 2019-07-30Views：

CBTG/CBTG Monorail trolley Capacity 500 - 5000 kg The smooth rolling CBTP/CBTG trolley is the economical choice for most applications. Adjustable - Trolley easily adjusts to fit any beam flange within range of adjustment. Specifications Mod

CBTG/CBTG Monorail trolley

Capacity 500 - 5000 kg

The smooth rolling CBTP/CBTG trolley is the economical choice for most applications.
Adjustable - Trolley easily adjusts to fit any beam flange within range of adjustment.

Specifications

Model	Capacity (kg)	Beam flange width (mm)	Beam flange thickness (mm)	Curve radius min. (mm）	Weight （kg）
CBTP 500	500	50-220	19	1000	8
CBTG 500					15
CBTP 1000	1000	58-220	19	1000	11
CBTG 1000					16
CBTP 2000	2000	66-220	19	1300	19
CBTG 2000					22
CBTP 3000	3000	74-220	27	1500	37
CBTG 3000					42
CBTP 5000	5000	90-220	27	1600	58
CBTG 5000					65

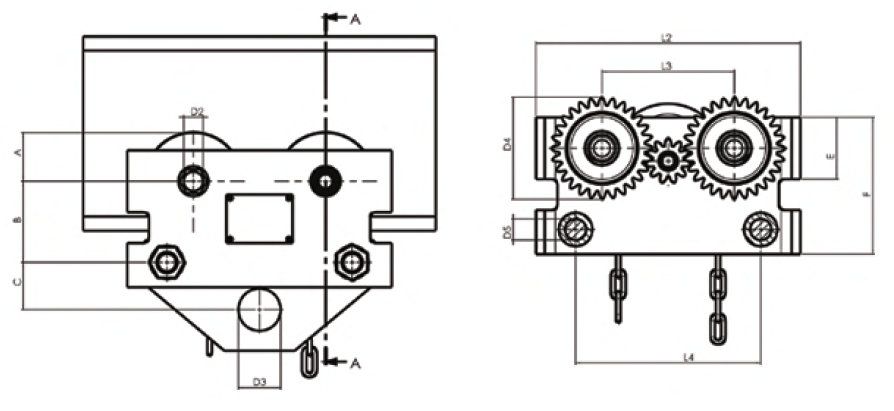

Dimensions

Model	CBTP 500kg	CBTP 1000kg	CBTP 2000kg	CBTP 3000kg	CBTP 5000kg	CBTG 500kg	CBTG 1000kg	CBTG 2000kg	CBTG 3000kg	CBTG 5000kg
Amin., mm	41.5	41.5	55.5	75	80	41.5	41.5	55.5	75	80
B, mm	74	77	92	120	134	77	77	92	120	134
C, mm	36.5	42	53.5	62	73	42	42	53.5	62	73
D, mm	Φ83	Φ83	Φ111	Φ150	Φ160	Φ83	Φ83	Φ111	Φ150	Φ160
D1, mm	-	-	-	-	-	Φ130	Φ130	Φ130	Φ164	Φ184
D2, mm	Φ16	Φ16	Φ19	Φ25	Φ27	Φ16	Φ16	Φ19	Φ25	Φ27
D3, mm	Φ30	Φ35	Φ48	Φ60	Φ70	Φ35	Φ35	Φ48	Φ60	Φ70
D4, mm	-	-	-	-	-	Φ92.9	Φ92.9	Φ115.53	Φ153.19	Φ172
D5, mm	Φ16	Φ21	Φ25	Φ31	Φ37	Φ21	Φ21	Φ25	Φ31	Φ37
E, mm	49	57	70	90	105	57	57	70	90	105
F, mm	120	135	155	190	220	135	135	155	190	220
G, mm	6	8	10	12	16	6	8	10	12	16
H, mm	4	4	4	4	4	4	4	4	4	4
K, mm	90	100	125	155	180	100	100	125	155	180
M, mm	8	8	12	14	20	8	8	12	14	20
L(max)-L(min), mm	58-220	58-220	58-220	74-220	90-220	58-220	58-220	58-220	74-220	90-220
L1, mm	300	310	320	340	350	310	310	320	340	350
L2, mm	192	250	300	370	440	250	250	300	370	440
L3, mm	90	130	150	180	209	130	130	150	180	209
L4, mm	130	170	210	260	300	170	170	210	260	300
