Pneumatic Hoist
YAL&KALC
Time: 2019-08-01Views：
The YAL&KALC pneumatic trolley side plate has threaded holes for mounting bracket attachments.
YAL&KALC

YAL & AirStar & KALC Pneumatic trolley

Rated load 250 - 3000 kg

Product Features

  • The steel side panels of the trolley cover the wheel position and protect the wheels from impact during the limit position. The side panel of the trolley is threaded and can be attached to the bracket.
  • The wheel material is heat-treated forged steel, curved rim, suitable for American standard tapered I-beam and wide-edge I-beam.
  • Wheel bearings are made of hermetically sealed ball bearings.
  • The vertically arranged cycloidal speed reducer meshes with the wheel gears via pinion gears.
  • The drive is immersed in high quality lubricant to protect the gear and adapt it to a wider temperature environment.
  • The 8-blade air motor provides high performance torque, smooth operation and precise control.
  • The control handle is positioned accurately and the load efficiency is high.
  • For hazardous environments, fire protection patterns are available. In addition to the copper-plated wheels with fire-proof function, the anti-sparking type has the same characteristics as ordinary ones.

Specifications

Yale model
(Applicable to YAL & KALC)
CM model
(for AirStar)
 Rated loadkg Trolley walking speed m/min I-beam width mm Minimum turning radius m Minimum beam depth mm I-beam range Net weight kg
standardmm A Type mm B Type mm
standard
FADT01 7411A 250, 500,1000 15 76-121 0.9 152 76 - 121 130-184 190-232 43
FADT02 7412A 2000 18 92-152 1.5 178 92 - 152 159-219 225-286 48
FADT03 7413A 3000 18 102-159 1.5 203 102 - 159 162-219 222-279 68
Spark and corrosion resistant
YAMDT01SR 7414A 338, 450, 675 15 76-121 0.9 152 76 - 121 130-184 190-232 43
YAMDT02SR 7415A 900 18 92-152 1.5 178 92 - 152 159-219 225-286 48
YAMDT03SR 7416A 1800 18 102-159 1.5 203 102 - 159 162-219 222-279 68

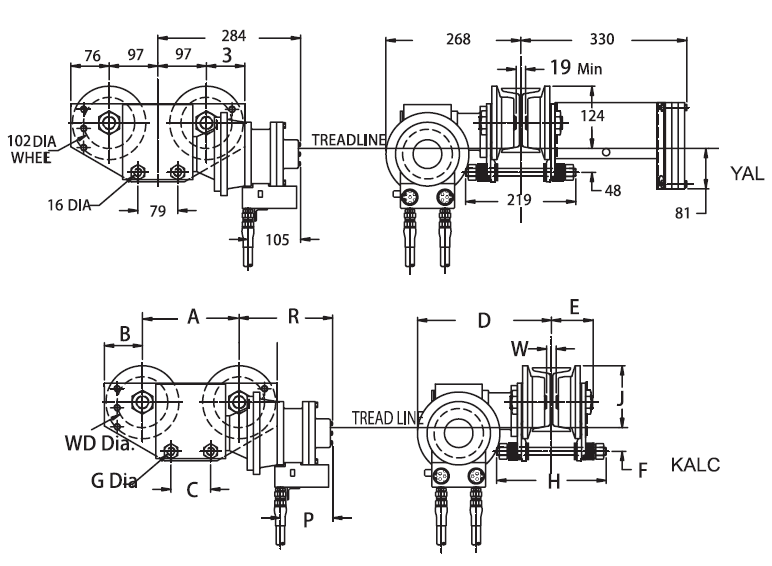

Dimensions

Type Standard type Anti-spark type
250, 500, 1000 kg 2000 kg 3000 kg 338, 450, 675 kg 900 kg 1800 kg
A,mm 194 232 232 194 232 232
B,mm 76 76 83 76 76 83
C,mm 79 127 152 79 127 152
Max D,mm 294 306 318 294 306 318
Max E,mm 114 127 127 114 127 127
Max F,mm 37 41 48 37 41 48
Dia G,mm 16 25 32 16 25 32
H,mm 225 241 305 225 241 305
Max J,mm 130 132 143 130 132 143
Max L,mm 94 92 89 94 92 89
P,mm 105 105 105 105 105 105
R,mm 187 168 168 187 168 168
Min W,mm 13 27 35 13 27 35
WD, mm 102 102 102 102 102 102
YAL&KALC
上一篇：KALC
下一篇：CPA Mini
