HTP/HTG Push and geared type trolley

Time: 2019-07-30Views：

HTP/HTG Push and geared type trolley Capacity 500 - 20000 kg The trolley enables the exact positioning or easy traversing of large loads with either manual or powered hoisting equipment, Standard Features It has excellent rolling features d

HTP/HTG Push and geared type trolley

Capacity 500 - 20000 kg

The trolley enables the exact positioning or easy traversing of large loads with either manual or powered hoisting equipment,

Standard Features

It has excellent rolling features due to machined steel wheels mounted on prelubricated, encapsulated ball bearings.
Adjustable to fit a wide range of beam widths and profiles (e.g. INP, IPE and IPB).
Adjustments are made by rotating the clevis load bar which also ensures the centred positioning of the hoist in the clevis - no creeping to the left or the right.
The trolley wheels are designed for a max. beam profile incline of 14 % (DIN 1025 - part 1).
Trolleys are in accordance with the UW and machinery directives,

Options

Rotating hand chain guide.
Stainless steel hand chains.
Buffers.
Corrosion resistant version.
Explosion proof version (ATEX).
Locking device to secure the trolley in position on the beam (park position e.g. on ships).

Specifications

Model		Capacity kg	Beam flange width b-Size A mm	Beam flange width b-Size B mm	Beam flange thickness t max.-Size A mm	Beam flange thickness t max.-Size B mm	Curve radius min.-Size A m	Curve radius min.-Size B m	Net Weight kg
Push trolley	Pull trolley	Capacity kg	Beam flange width b-Size A mm	Beam flange width b-Size B mm	Beam flange thickness t max.-Size A mm	Beam flange thickness t max.-Size B mm	Curve radius min.-Size A m	Curve radius min.-Size B m	Push trolley	Pull trolley
HTP 500	HTG 500	500	50 - 220	160 - 300	25	40	900	900	42227	42290
HTP 1000	HTG 1000	1000	50 - 220	160 - 300	25	40	900	900	42259	42322
HTP 2000	HTG 2000	2000	66 - 220	160 - 300	25	40	1150	1150	16-19	18-21
HTP 3000	HTG 3000	3000	74 - 220	160 - 300	25	40	1400	1400	32-36	35-39
HTP 5000	HTG 5000	5000	90 - 220	180 - 300	25	40	1800	1800	48-52	52-56
-	HTG 8000	8000	-	125 - 310	-	40	-	1800	-	104
-	HTG 10000	10000	-	125 - 310	-	40	-	1800	-	104
-	HTG 15000	15000	-	125 - 310	-	40	-	5000	-	230
-	HTG 20000	20000	-	125 - 310	-	40	-	5000	-	230

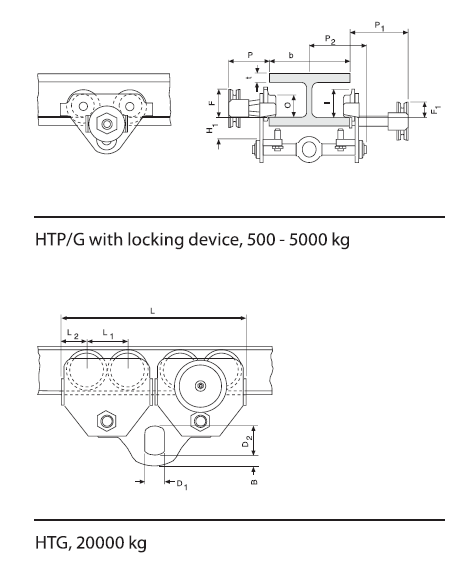

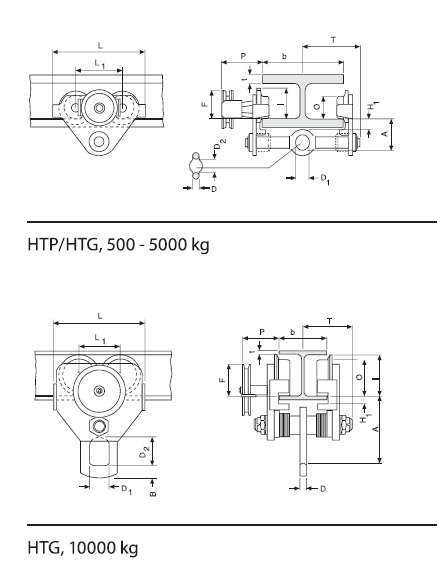

Dimensions

Model	HTP 500	HTP 1000	HTP 2000	HTP 3000	HTP 5000	HTG 500	HTG 1000	HTG 2000	HTG 3000	HTG 5000	HTG 8000	HTG 10000	HTG 15000	HTG 20000
A, mm	A=77 B=92	A=82.5 B=97.5	A=98.5 B=113.5	A=114 B=129	A=132.5 B=147.5	A=77 B=92	A=82.5 B=97.5	A=98.5 B=113.5	A=114 B=129	A=132.5 B=147.5	- B=276	- B=276	- B=270	- B=270
B, mm	-	-	-	-	-	-	-	-	-	-	52	52	70	70
D, mm	16	17	22	26	33	16	17	22	26	33	30	30	35	35
D1, mm	25	30	40	48	60	25	30	40	48	60	80	80	110	110
D2, mm	30	35	47	58	70	30	35	47	58	70	114	114	155	155
F (HTG), mm	-	-	-	-	-	91.5	91.5	90.5	107.5	149.5	113	113	113	113
F1, mm	46	46	46	46	45.5	46	46	46	46	45.5	-	-	-	-
H1, mm	A=30.5 B=45.5	A=30.5 B=45.5	A=30.5 B=45.5	A=30 B=45	A=30 B=45	A=30.5 B=45.5	A=30.5 B=45.5	A=30.5 B=45.5	A=30 B=45	A=30 B=45	- B=45	- B=45	- B=45	- B=45
I (HTP), mm	71.5	71.5	95.5	131	142.5	-	-	-	-	-	-	-	-	-
I (HTG), mm	-	-	-	-	-	76.5	76.5	98	132.5	148.5	170	170	170	170
L, mm	260	260	310	390	450	260	260	310	390	450	430	430	870	870
L1, mm	130	130	150	180	209	130	130	150	180	209	200	200	200	200
L2, mm	-	-	-	-	-	-	-	-	-	-	-	-	115	115
O, mm	60	60	80	112	125	60	60	80	112	125	150	150	150	150
P (HTG), mm	-	-	-	-	-	110	110	110	110	110	-	163	163	163
P1, mm	168	168	168	168	168	168	168	168	168	168	-	-	-	-
P2, mm	146	150	155	160	167.5	146	150	155	160	167.5	-	-	-	-
T, mm	A=146 B=187	A=150 B=187	A=155 B=189.5	A=160 B=191.5	A=167.5 B=191.5	A=146 B=187	A=150 B=187	A=155 B=189.5	A=160 B=191.5	A=167.5 B=191.5	- B=270	- B=270	- B=270	- B=270
