Manual Trolley

632 low turning radius car

Time: 2019-07-31Views：

The 632 low turning radius car is a revolutionary product that is more compact, smaller and more rugged, while being 50% lighter than other similar cars.

632 low turning radius car

Rated load 250 - 3000 kg

As a revolutionary product, this car is more compact, smaller and more durable, and is 50% lighter than other similar cars.

Product Features

The turning radius is 178 - 254 mm.
High quality steel manufacturing.
The unique double row bearing design gives the wheel better wear performance.
Larger V-shaped bars can be adjusted within a certain range.
Low headroom design.
Pre-loaded with a permanent lubricant.
The unique fade-out dial design can be easily adjusted to fit beams of different widths and special tracks.
It is equipped with a dust cover to protect the bearing.
The trolley can be used for large beams and tracks.
Optional cast iron (except 3 tons).

Specifications

Model	Rated load kg	I-beam width mm	Minimum turning radius mm	Tread diameter mm	Net weight kg
3222	250-500	67-129	178	70	4
3224	1000	67-129	178	70	5
3226	1500-2000	86-143	254	89	10
3230	3000	102-159	254	89	13

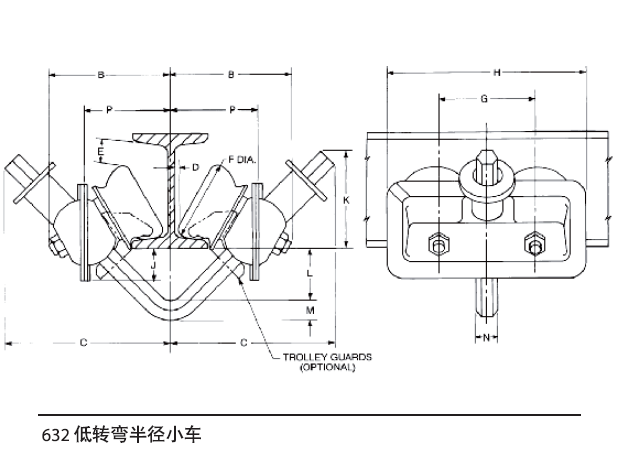

Dimensions

Model	1/4 & 1/2	1	1 1/2 & 2	3
B, mm	108	111	143	157
C, mm	149	152	191	205
D, mm	5	5	10	17
E, mm	21	21	56	103
F, mm	70	70	89	89
G, mm	86	86	114	114
H. mm	178	178	229	229
J, mm	29	29	38	41
K. mm	86	89	111	122
L, mm	46	41	51	67
M, mm	17	22	29	29
N, mm	22	25	32	32
P, mm	76	79	98	125
