Yalelift ITP/ITG Hand chain hoist with integrated push or geared type trolley Capacity 500 - 20000 kg The combination of the Yalelift 360 with a low headroom manual trolley provides even more flexibility in the application of the Yalelift 3

Yalelift ITP/ITG Hand chain hoist with integrated push or geared type trolley

Capacity 500 - 20000 kg

The combination of the Yalelift 360 with a low headroom manual trolley provides even more flexibility in the application of the Yalelift 360.

Standard Features

All units of this series up to a capacity of 3000 kg are provided with single chain fall and the min. headroom (Dim. A) has been further reduced. Ideal for applications with low ceilings and limited headroom.
The proven and almost stepless adjustment system allows quick and easy assembly of the trolley.
Trolleys up t0 5 t are offered for two beam ranges.
Range A for a flange width up t0 180 mm is standard and covers approx. 80 % of all requirements.
Conversion to range B for beam width up t0 300 mm can be easily accomplished.
The trolley wheels are designed for a max. beam profile incline of 14 % (DIN 1025 - part l), excellent rolling features are guaranteed by prelubricated, encapsulated ball bearings.
Anti-drop and anti-tilt devices as standard.

Options

Adjustable overload prevention device.
Stainless steel load and hand chains.
Chain container
Corrosion resistant version
Explosion proof version (ATEX)
Beam locking device to secure the unloaded trolley in a fixed position on the beam (park position e.g. on ships).
Available up to a capacity of 20000 kg.

Specifications

Model	Capacity kg	Number of chain falls	Size	Beam flange width b mm	Beam flange thickness t mm	Curve radius m	Weight at Standard lift(3m)-P kg	Weight at Standard lift(3m)-G mm	Weight at Standard lift(3m) with locking device -P kg	Weight at Standard lift(3m) with locking device -G kg
YLIT* 500	500	1	A	50 - 180	19	0.9	20	24	26	31
YLIT* 500	500	1	B	180 - 300	19	0,9	21	25	27	32
YLIT* 1000	1000	1	A	50 - 180	19	0.9	27	32	35	40
YLIT* 1000	1000	1	B	180 - 300	19	0.9	29	33	37	41
YLIT* 2000	2000	1	A	58 - 180	19	1.15	44	49	52	57
YLIT* 2000	2000	1	B	180 - 300	19	1.15	46	50	54	58
YLIT* 3000	3000	1	A	74 - 180	27	1.5	77	82	86	91
YLIT* 3000	3000	1	B	180 - 300	27	1.4	79	84	88	93
YLIT* 5000	5000	1	A	98 - 180	27	2	125	130	135	140
YLIT* 5000	5000	1	B	180 - 300	27	1.8	129	134	139	144
YLIT* 10000	10000	1	B	125 - 310	40	1.8	-	-	-	-
YLIT* 20000**	20000	1	B	180 - 310	40	5.0	-	-	-	-

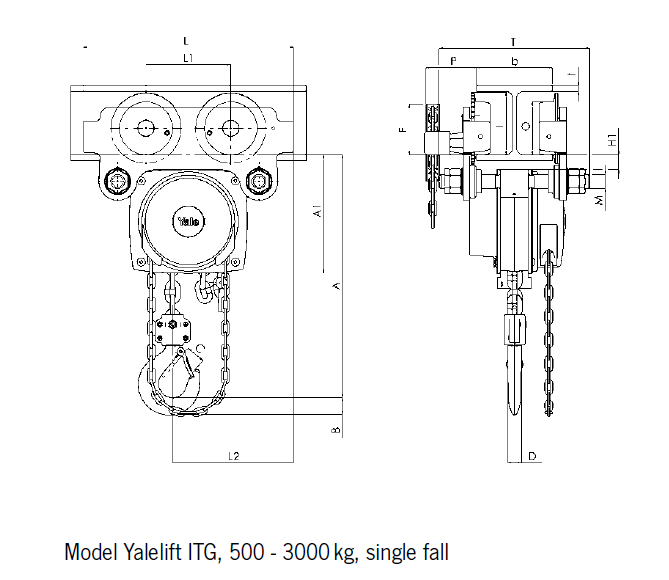

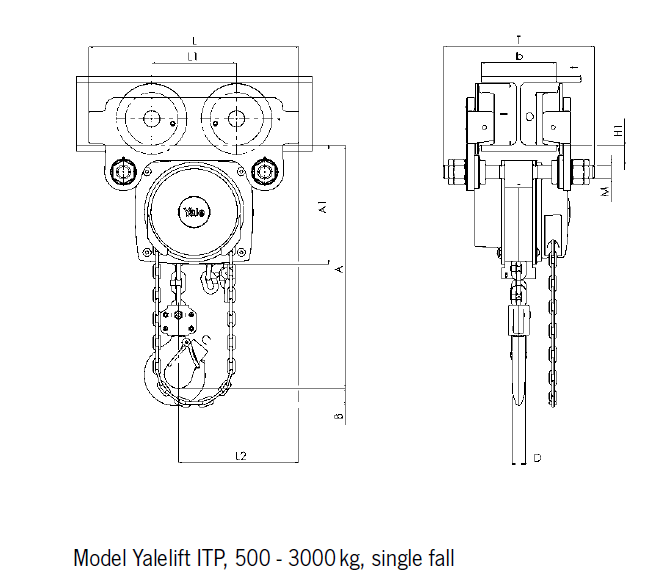

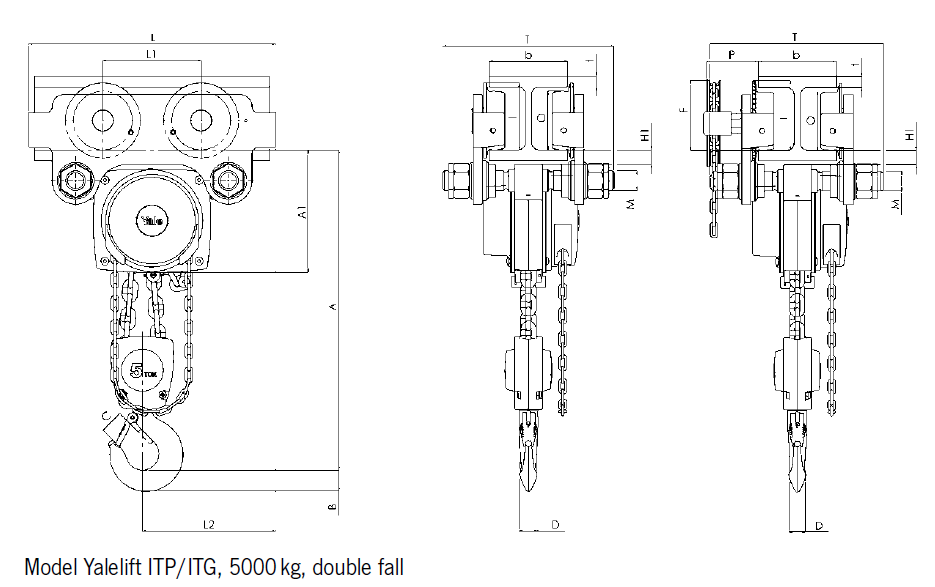

Dimensions

Model	YLIT 500	YLIT 1000	YLIT 2000	YLIT 3000	YLIT 5000	YLIT 10000
Amin.,mm	245	272	323	382	550	784
A1,mm	158	178	205.5	252	260.5	380
A2,mm	-	-	-	-	-	-
B,mm	17	22	30	38	45	68
C,mm	24	29	35	40	47	68
D,mm	14	19	22	30	37	50
F(Geared),mm	92	92	91	107	149.5	113
H1,mm	24.5	24	23.5	32	30.5	55
I(Pushed),mm	71.5	71.5	95.5	131	142.5	169
I(Geared),mm	76.5	76.5	98	132.5	148.5	169
L,mm	270	310	360	445	525	430
L1,mm	130	130	150	180	209	200
L2,mm	159	175	207	256	283	261
L3,mm	-	-	-	-	-	-
L4,mm	-	-	-	-	-	-
M,mm	M 18	M 22	M 27	M 30	M 42	M 48
O,mm	60	60	80	112	125	150
P(Geared),mm	108	110	112	112	117	158
T(area A),mm	280	290	305	320	364	540
T(area B),mm	400	410	425	440	484	540
