Hand Chain Hoist

Yalelift LHP/LHG

Time: 2019-07-30Views：

Yalelift LHP/LHG Hand chain hoist with integrated push or geared type trolley (low headroom) Capacity 500 - 10000 kg The hand chain hoist model Yalelift LH with integrated low headroom manual trolley is the consequent further development of

Yalelift LHP/LHG Hand chain hoist with integrated push or geared type trolley (low headroom)

Capacity 500 - 10000 kg

The hand chain hoist model Yalelift LH with integrated low headroom manual trolley is the consequent further development of the Yalelift IT, Wherever an even smaller headroom is essential. the Yalelift LH is the ideal choice.

Standard Features

The specially developed chain reeving system and chain guide allow the bottom block to be pulled laterally to the hoist even further up and almost against the beam flange.
The integrated design of the innovative Yalelift LH uses the same manual trolleys as incorporated in the Yalelift IT series.
All models of the LH series up t0 3000 kg capacity are provided with single chain fall.
The proven and almost stepless adjustment system allows quick and easy assembly of the trolley.
The trolleys up t0 5 t are offered for two beam ranges.
Range A for a flange width up t0 180 mm is standard and covers approx. 80 % of all requirements.
Conversion to range B for beam width up t0 300 mm can be easily accomplished.
The trolley wheels are designed for a max. beam profile incline of 14 % (DIN 1025 - part 1), excellent rolling features are guaranteed by prelubricated, encapsulated ball bearings.
The low headroom version of the Yalelift IT is adjustable to fit a wide range of beam profiles (e.g. INP, IPE, IPB).
Anti-drop and anti-tilt devices as standard.
Excellent rolling features due to machined steel wheels mounted on pre-lubricated, encapsulated ball bearings.

Options

Adjustable overload prevention device.
Stainless steel load and hand chains.
Chain container
Corrosion resistant version
Explosion proof version (ATEX)
Beam locking device to secure the unloaded trolley in a fixed position on the beam (park position e.g. on ships).
Available up to a capacity of 10000 kg.

Specifications

Model	Capacity kg	Standard lifting height m	Number of chain falls	Size	Beam flange width mm	Headroommm	Curve radius min. mm	Weight kg
Model	Capacity kg	Standard lifting height m	Number of chain falls	Size	Beam flange width mm	Headroommm	Curve radius min. mm	Push trolley	Pull trolley
YLLH*500	500	3	1	A	60-180	188	0.9	27	31
YLLH*500	500	3	1	B	180-300	188	0.9	27	32
YLLH*1000	1000	3	1	A	70-180	211	0.9	35	40
YLLH*1000	1000	3	1	B	180-300	211	0.9	36	41
YLLH*2000	2000	3	1	A	82-180	264	1.15	61	65
YLLH*2000	2000	3	1	B	180-300	264	1.15	62	67
YLLH*3000	3000	3	1	A	100-180	316	1.5	107	112
YLLH*3000	3000	3	1	B	180-300	316	1.4	109	114
YLLH*5000	5000	3	2	A	110-180	425	2	152	157
YLLH*5000	5000	3	2	B	180-300	425	1.8	156	161
YLLH*10000	10000	3	3	A	125 -180	565	1.8	on request	on request
YLLH*10000	10000	3	3	B	180-310	565	1.8	on request	on request

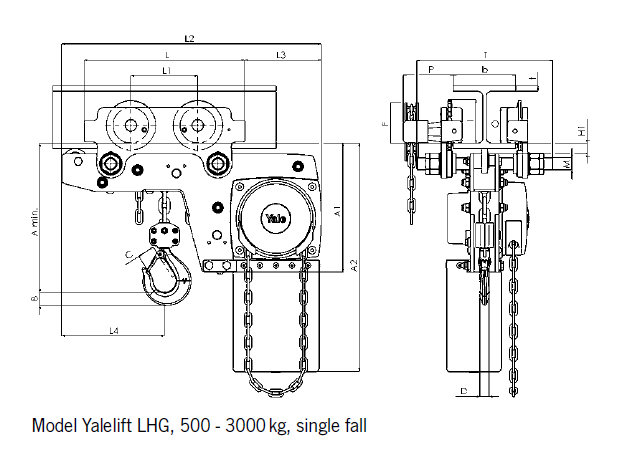

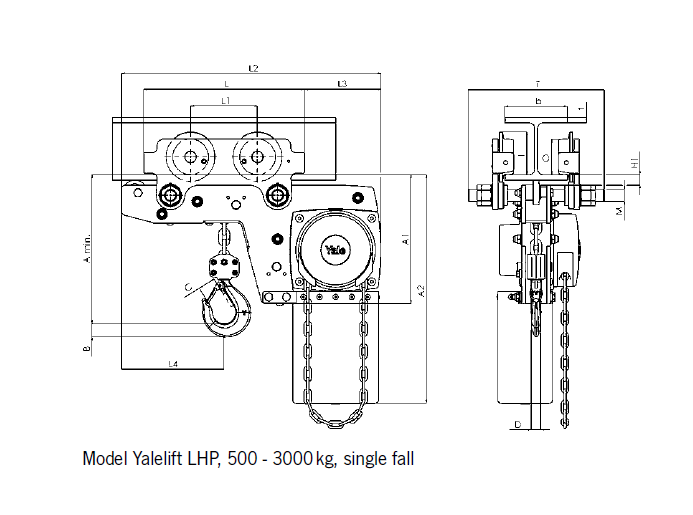

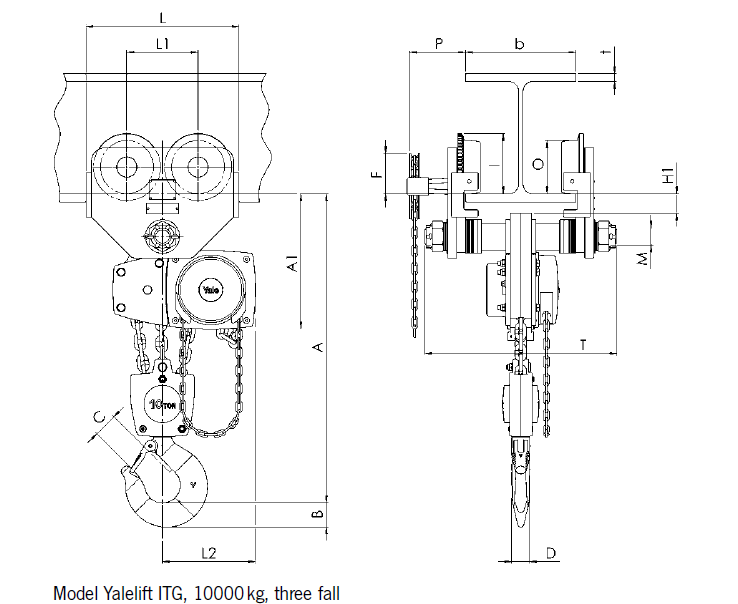

Dimensions

Model	YLLH 500	YLLH 1000	YLLH 2000	YLLH 3000	YLLH 5000	YLLH 10000
Amin.,mm	188	211	264	316	425	565
A1,mm	223	250	289	346	345	365
A2,mm	381	427	511	614	612	665
B,mm	17	22	30	38	45	68
C,mm	24	29	35	40	47	68
D,mm	14	19	22	30	37	50
F(Geared),mm	92	92	91	107	150	150
H1,mm	24	24	24	32	31	45
I(Pushed),mm	72	72	96	131	143	170
I(Geared),mm	77	77	98	133	149	170
L,mm	270	310	360	445	525	485
L1,mm	130	130	150	180	209	225
L2,mm	444	488	582	690	720	805
L3,mm	124	135	172	203	175	215
L4,mm	184	201	230	265	283	348
M,mm	M 18	M 22	M 27	M 30	M 42	M 48
O,mm	60	60	80	112	125	150
P(Geared),mm	108	110	112	112	117	165
T(area A),mm	280	290	305	320	364	440
T(area B),mm	400	410	425	440	484	540
