Hand Chain Hoist

Yalelift360 ATEX

Time: 2019-07-31Views：

The Yalelift360 ATEX explosion-proof chain hoist is designed to surpass the traditional chain hoist in terms of operating space and user safety.

Yalelift 360 ATEX Hand chain chain hoist

Rated load 500 - 20000 kg

The Yalelift 360 with low clearance trolley makes the Yalelift 360 application more flexible.

Product Features

All models of this series of explosion-proof hoists with a rated load of less than 3000 kg are single-chain and reduce the minimum headroom (frame size A). Suitable for applications with low headroom requirements such as low ceilings and limited space.
The trolley is easy to install and adjust, and can be precisely adjusted according to the width of the steel beam.
Carts with a rated load of less than 5 tons are available in two sizes. Type A is a standard trolley for I-beams up to 180 mm wide. This model covers almost 80% of the customer's needs. At the same time, the Type A can be easily converted to Type B (I-beam with a maximum width of 300 mm).
The trolley wheels (MEDIUM and HIGH grades only) are designed to ensure flexible rolling at the lower edge of the I-beam at 14% (DIN 1025-1). At the same time, the closed ball bearing with lubrication treatment ensures the good operation of the wheel.
Standard car anti-fall and anti-tilt device.
Anti-spark coating.
A car with a bumper block.
Copper-plated hooks and lifting hooks are available for MEDIUM or higher.
The HIGH grade features a stainless steel lifting chain.

Product option

Specifications

Yalelift 360 ATEX BASIC II 3 GD c IIB T4/II 2 GD c IIA T4Technical Parameters
Model	EAN-No.4025092*	Rated load kg / number of lifting chains	Chain size dxp mm	Lifting chain rating	Improve one-meter chain stroke m	Hand pull chain tension under rated load daN	Standard (3 m) lift height net weight kg
YL ATEX 500	*194969	500/1	5x15	T	30	21	9
YL ATEX 1000	*198196	1000/1	6x18	T	49	30	13
YL ATEX 2000	*199872	2000/1	8x24	T	71	32	20
YL ATEX 3000	*210522	3000/1	10x30	T	87	38	29
YL ATEX 5000	*218672	5000/2	10x30	T	174	34	38
YL ATEX 10000	*224611	10000/3	10x30	V	261	44	71

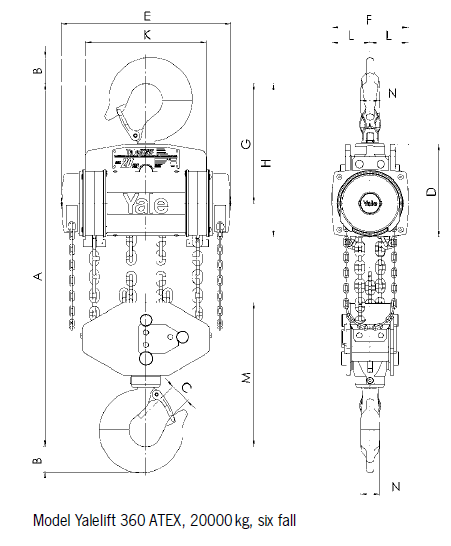

YL ATEX 20000	*225625	20000/6	10x30	V	522	2x44	196

Yalelift 360 ATEX MEDIUM II 2 GD c IIB T4Technical Parameters
Model	EAN-No.4025092*	Rated load kg / number of lifting chains	Chain size dxp mm	Lifting chain rating	Improve one-meter chain stroke m	Hand pull chain tension under rated load daN	Standard (3 m) lift height net weight kg
YL ATEX 500	*206365	500/1	5x15	T	30	21	9
YL ATEX 1000	*206419	1000/1	6x18	T	49	30	13
YL ATEX 2000	*206426	2000/1	8x24	T	71	32	20
YL ATEX 3000	*206440	3000/1	10x30	T	87	38	29
YL ATEX 5000	*206464	5000/2	10x30	T	174	34	38
YL ATEX 10000	*239547	10000/3	10x30	V	261	44	71
YL ATEX 20000	*251846	20000/6	10x30	V	522	2x44	196

Yalelift 360 ATEX HIGH II 2 GD c IIC T4Technical Parameters
Model	EAN-No.4025092*	Rated load kg / number of lifting chains	Chain size dxp mm	Lifting chain rating	Improve one-meter chain stroke m	Hand pull chain tension under rated load daN	Standard (3 m) lift height net weight kg
YL ATEX 500	*929806	500/1	5x15	S	30	21	9
YL ATEX 1000	*929790	900/1	6x18	S	49	30	13
YL ATEX 2000	*929783	1250/1	8x24	P	71	32	20
YL ATEX 3000	*929776	2000/1	10x30	P	87	38	29
YL ATEX 5000	*929769	4000/2	10x30	P	174	34	38
YL ATEX 10000	*929752	6000/3	10x30	P	261	44	71
YL ATEX 20000	*929745	12000/6	10x30	P	522	2x44	196
